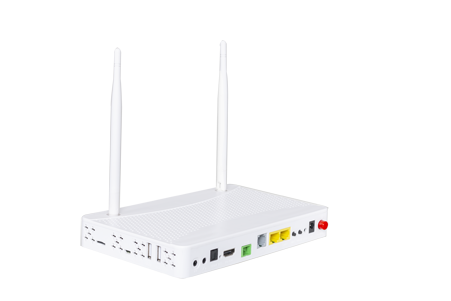

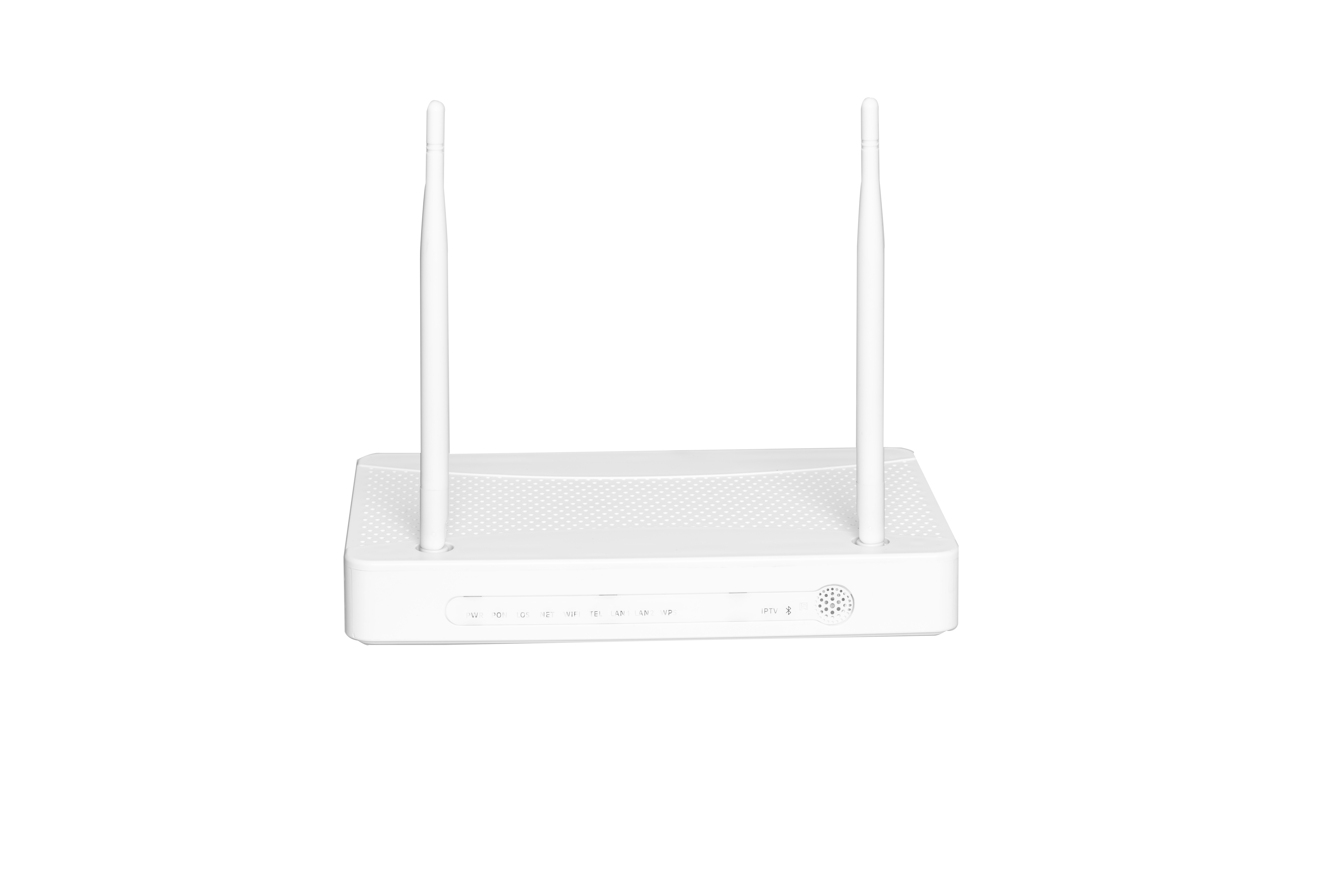

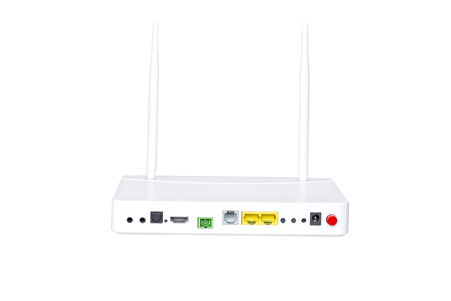

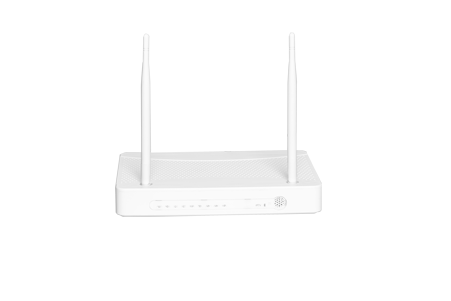

1SPDF+1HDMI+1GE+1FE+1TEL+WIFI(2.4G)+1PON combined with IPTV plus Bluetooth

Category: OTT ONU

Model:TPB2100
Spec: 1SPDF+1HDMI+1GE+1FE+1TEL+WIFI(2.4G)+1PON
Android 11 IPTV plus DRM by BT control

Consult Now

Description

Features

Specifications

OTT part:

1、 Hardware 3D graphics acceleration

2、 Win8-styled launcher, OOBE, Browser, PlayStore, Online Live &VOD

3、 HDMI 2.0 up to 4K with CEC HDCP 1.4/2.2

4、 Support 3.5mm CVBS/R/L Jack-to-RCA, audio SPDIF optical

5、 Good support to HTML5,HTTP HLS(VBR),DLNA/Miracast/Wi-Fi Direct

6、 Support sufficient media format, music format and picture format

7、 2 High Speed USB 2.0, one is host and the other is OTG

8、 High speed SD(TF) storage card

9、 Adequate multilingual support

PON part:

1、 Gigabit PON port for uplink and downlink, high bandwidth and low delay requirements.

2、 1GE+1FE Ethernet electrical port is used to connect lower-level terminals to form an all-optical network. It is used to connect lower-level terminals for FTTR and FTTO.

3、Provide 1 RJ11 telephone port, support SIP voice and fax.

4、Support 2.4G WIFI.

5、Support EPON/GPON dual-mode adaptive.

6、 Supports packet filtering and protection against illegitimate packet attacks, suppressing unknown unicast, broadcast, and multicast messages .

7、 Support PPPOE+ function for accurate user identification.

8、Support multicast protocols such as IGMP Snooping/MLD.

9、 PON system downstream uses AES-128 algorithm for data encryption.

10、Support dual management mode based on DBA technology or priority to ensure the minimum specified bandwidth requirements of users.

Specification

Features

Function Description

Android system

Android11Chipset

Quad ARM Cortex A55 1.2GHz

GPU

Penda-core Mali-450 750MHz

DDRAM/Flash

2GB/16GB

Remote controller

Infra-red

General Android TV BOX RC unit

BLE (optional)

2.4G Bluetooth RC unit

PON uplink port

Working wavelength

Transmit wavelength:1310/1550nm

Receiving wavelength: 1490nm

Output optical power

-1～+4 dBm

Receiving sensitivity

< -28 dBm

Connector

SC/PC Connector

UNI User interface

1GE+1FE Ethernet electrical port

110/100/1000M

110/100M

Telephone interface

1 RJ11 interface

Support SIP

WIFI interface

2.4G band

Support 802.1a/g/n

USB interface

2

Support USB2.0

Network management mode

Local management

Support local WEB management

Remote management

Centralized management on OLT, support WEB, CLI

Software upgrade

Local upgrade

Local download and upgrade via WEB

Remote upgrade

Remote software download and upgrade through OLT CLI

Physical properties

Size

205x132x30 mm (Length * Width * Height)

Power supply

DC 12V==1.5A

Power consumption

< 12W

Environmental parameters

Operating temperature: -10～45℃

Storage temperature: -30～60℃

Relative humidity: 10～90% (non-condensing)

Weight

322g

Specification	Features	Function Description
Android system	Android11Chipset	Quad ARM Cortex A55 1.2GHz
	GPU	Penda-core Mali-450 750MHz
	DDRAM/Flash	2GB/16GB
Remote controller	Infra-red	General Android TV BOX RC unit
Remote controller	BLE (optional)	2.4G Bluetooth RC unit
PON uplink port	Working wavelength	Transmit wavelength:1310/1550nm Receiving wavelength: 1490nm
	Output optical power	-1～+4 dBm
	Receiving sensitivity	< -28 dBm
	Connector	SC/PC Connector
UNI User interface	1GE+1FE Ethernet electrical port	110/100/1000M 110/100M
Telephone interface	1 RJ11 interface	Support SIP
WIFI interface	2.4G band	Support 802.1a/g/n
USB interface	2	Support USB2.0
Network management mode	Local management	Support local WEB management
Network management mode	Remote management	Centralized management on OLT, support WEB, CLI
Software upgrade	Local upgrade	Local download and upgrade via WEB
Software upgrade	Remote upgrade	Remote software download and upgrade through OLT CLI
Physical properties	Size	205x132x30 mm (Length * Width * Height)
	Power supply	DC 12V==1.5A
	Power consumption	< 12W
	Environmental parameters	Operating temperature: -10～45℃ Storage temperature: -30～60℃ Relative humidity: 10～90% (non-condensing)
	Weight	322g
