16PON+4GE+4SFP(GE/10GE)
Category: 16 Port GPON OLT
Model: STel 16G
Spec: 16PON+4GE+4SFP(GE/10GE)
Consult Now
Spec: 16PON+4GE+4SFP(GE/10GE)

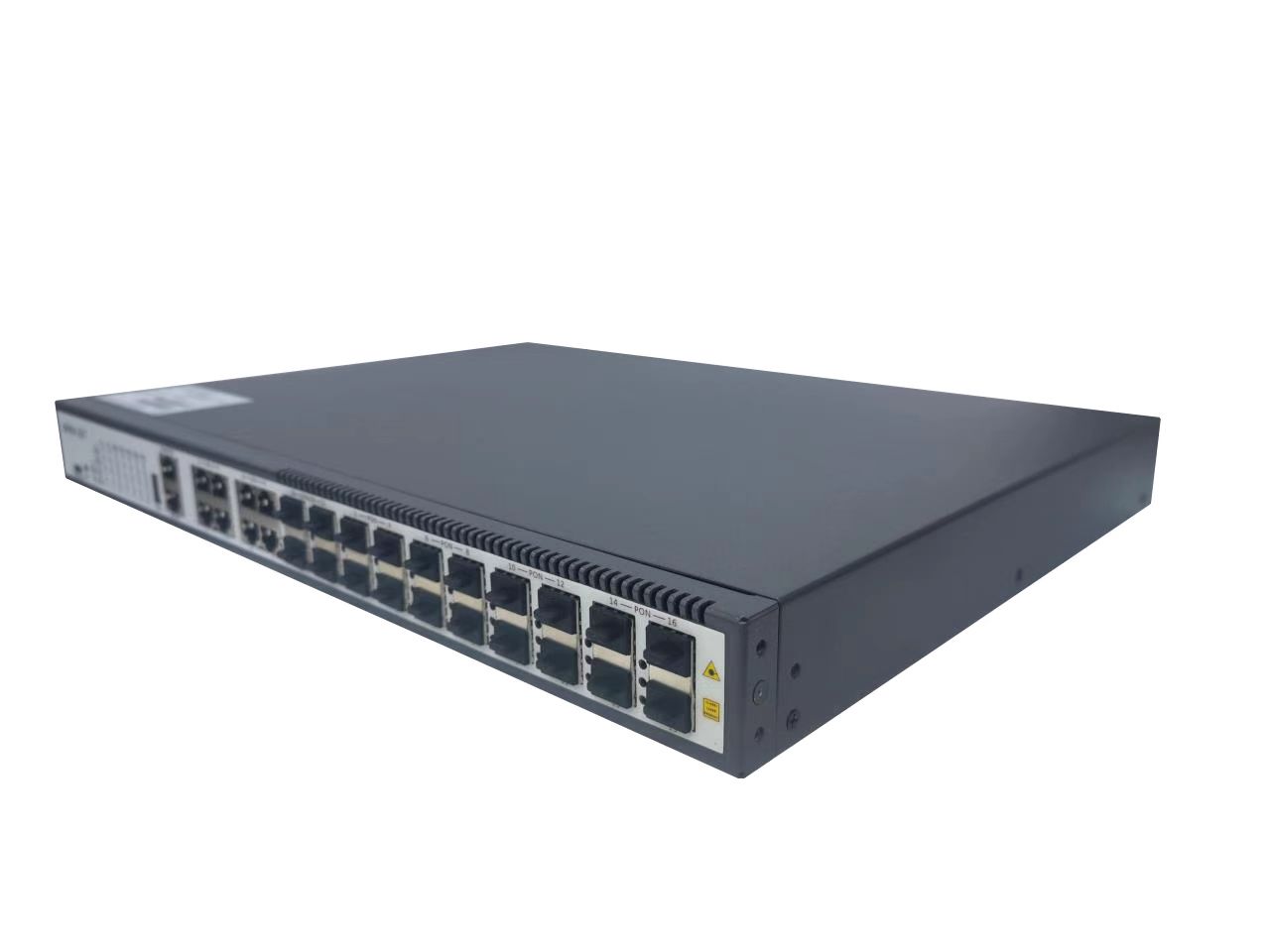

STel 16G GPON OLT provides 16 GPON ports, 4GE copper RJ45 Ethernet ports and 4*GE(SFP)/4*10GE(SFP+). It has high reliability, high density and powerful switching and routing abilities. It is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
GPSTel 16G OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 16 PON ports, each port supports up to 128 ONUs, the whole device supports up to 2048 ONUs. Small size and high density OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network. It can be deployed in compact room environment, and can also be used for “Triple-Play” applications.

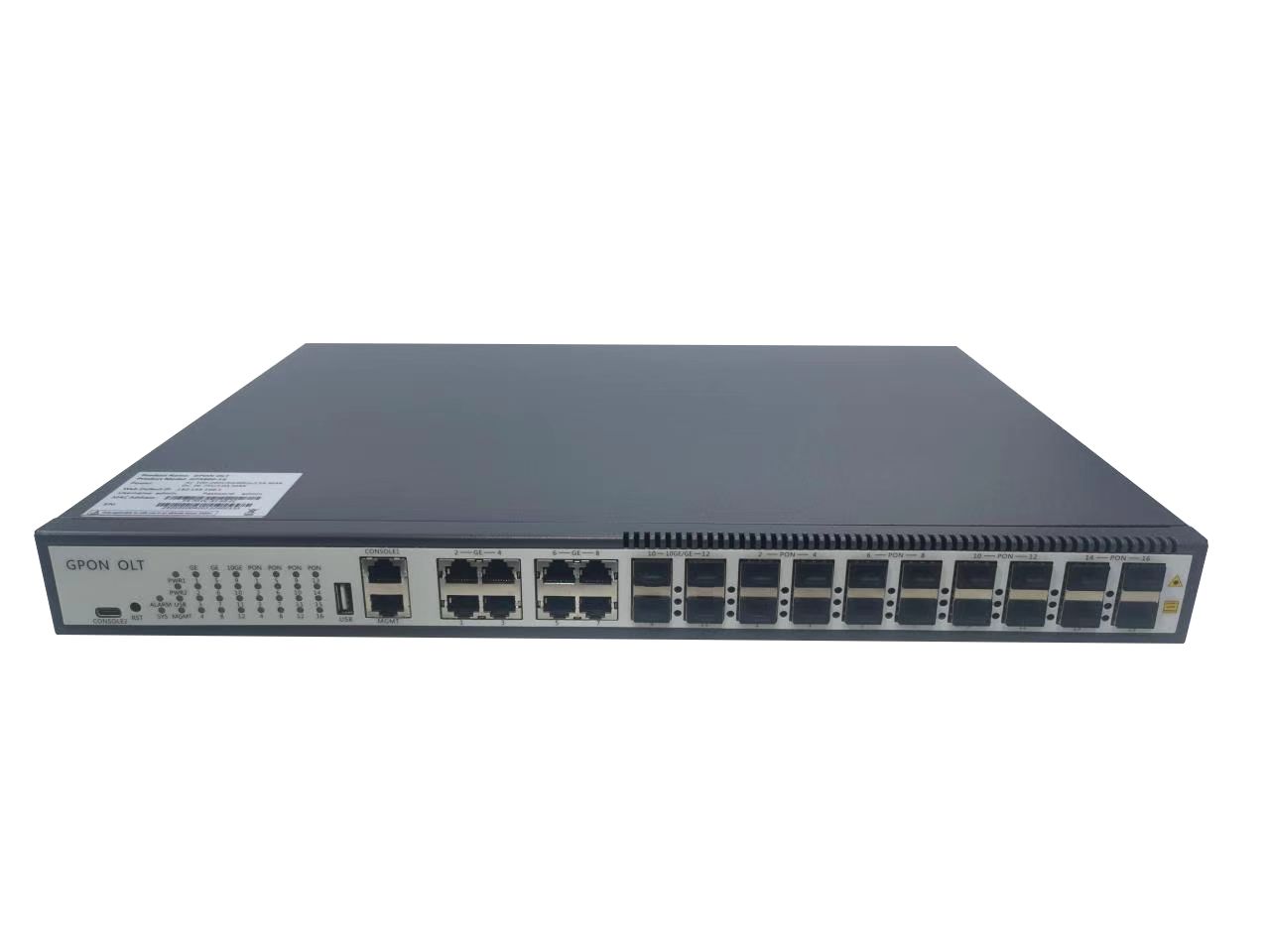

Ø 1U 19 inch standard box GPON OLT with 16 PON ports
Ø Broadcom mainstream chip scheme, high performance
Ø Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
Ø L3 function, support static route, RIP v1/v2, OSFP v2, ARP proxy
Ø Tcont DBA, Gemport traffic
Ø QoS based on port, VID, TOS and MAC address
Ø Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
Ø Support IGMP snooping, 256 IP Multicast Groups, IGMP Proxy
Ø Support 802.1D and 802.1W
Ø Support static LACP
Ø Specialized design for system breakdown prevention to maintain stable system
Ø Support port-based rate limitation and bandwidth control
Ø Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
Ø Support Dynamic Bandwidth Allocation (DBA)
Ø Support ONU auto-discovery/link detection/remote upgrade of software
Ø Support ONT automatically discovery, auto configuration
Ø Support ONT firmware can be auto upgraded, download ONT firmware to OLT from web/tftp/ftp
Ø Support SNMP,Telnet,CLI,WEB,SSH v1/v2 and Web management
Ø Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc
Ø Support broadcasting storm resistance function
Ø Firewall function
Ø Support remote software upgrade

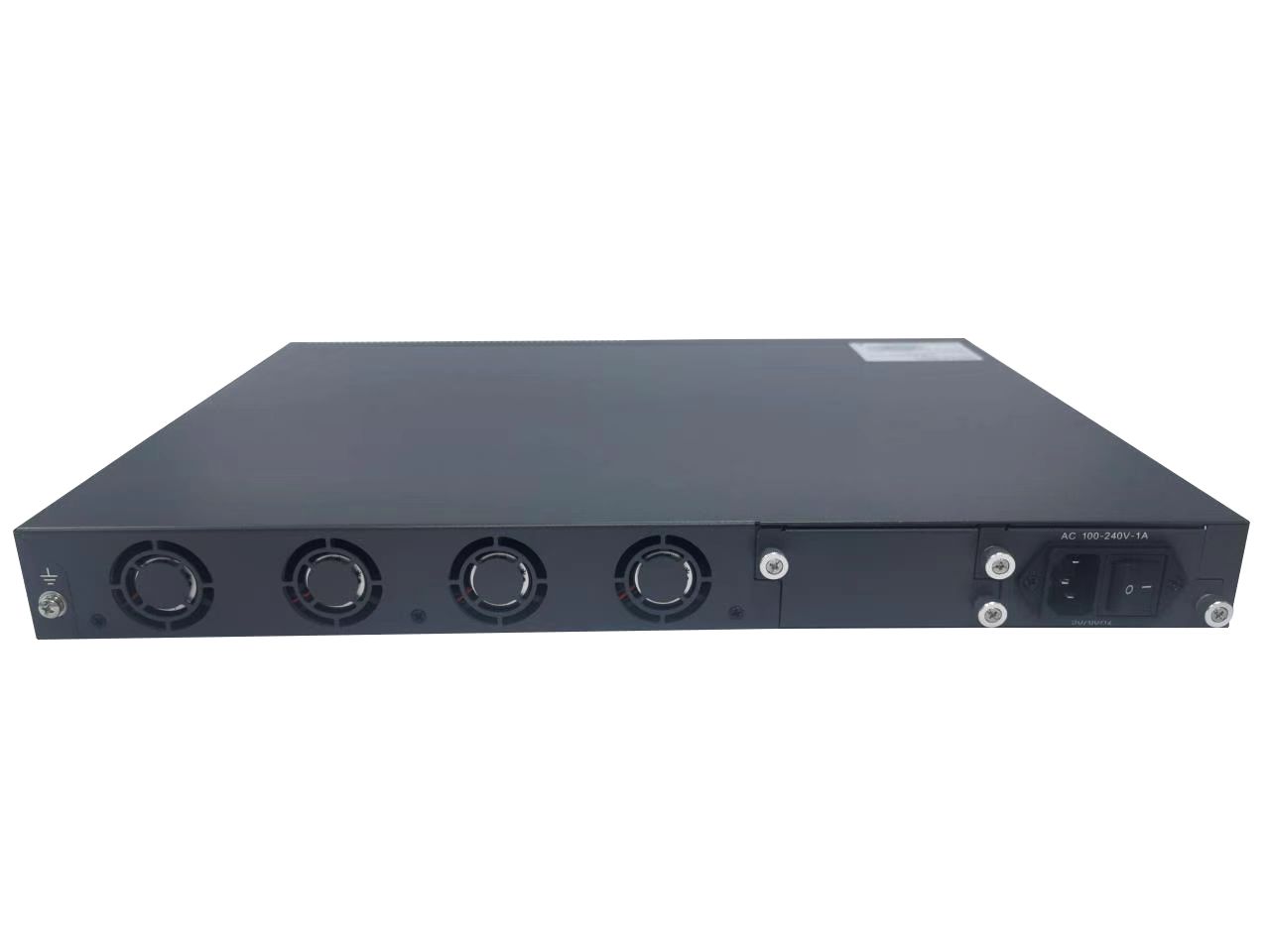

Ø Two power supply redundancy design to improve reliability
Ø Support power-off alarm function,easy for link problem detection
Ø Support ONT limit and time limit Management
Ø Support for Industrial Temperature
|
Items |
Unit |
Specifications |
|
PON standard. |
|
GPON ITU-T G.984.x |
|
PON interface |
Qty. |
16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power, Transmitting optical power: +1 ~ +5dBm Transmission distance: 20KM. Max splitting ratio1:128 |
|
Speed |
Upstream 2.488G Downstream 1.244G |
|
|
Wavelength |
nm |
Tx1310, Rx 1490 |
|
Uplink |
GE |
8*copper Ethernet ports 10/100/1000M auto-negotiation |
|
SFP GE SFP 10GE |
4*GE(SFP)/ 4*10GE (SFP+) auto-detection |
|
|
Layer 3 |
|
Support static route, RIP v1/v2, OSFP v2, ARP proxy |
|
Management Ports |
|
1*10/100BASE-T out-band port, 1*CONSOLE port |
|
Management Mode |
|
SNMP, Telnet, CLI, WEB |
|
VLAN |
|
Tag / Un-tag，VLAN transmission，QinQ |
|
Operating condition |
℃ |
Operating temp: -5 ~ +55 |
|
Storing condition |
℃ |
Storing temp: -40 ~ +85 |
|
Humidity |
% |
5~90(non-condensing) |
|
Power consumption |
W |
≤85 |
|
Dimension |
mm |
442×320×44(L×W×H) |
|
Net weight |
Kg |
4.5 |
